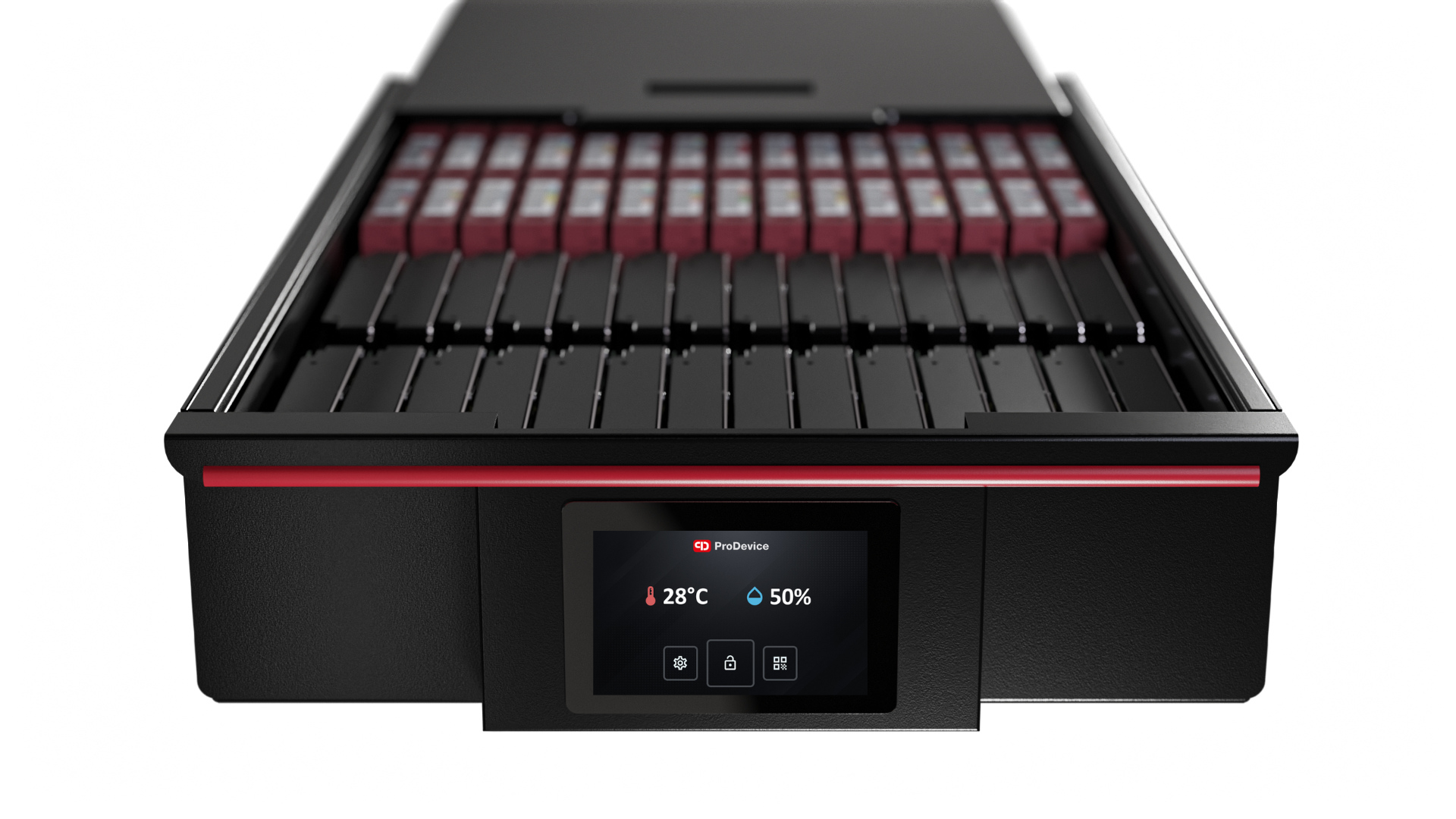

ProDevice MSS - drawer for 19” rack

The ProDevice MSS (Modular Storage System) drawers are a smart, professional and space-optimizing solution for secure storage and archiving of data media (magnetic tapes, HDD 3.5”and 2.5”, SSD disks etc.) in a 19” rack.

ProDevice MSS is part of the ProDevice ecosystem, which includes products (for storage, transport, data and media destruction) and software enabling the management of processes related to data security.

ProDevice Mobile App. available and included to scan serial number of media and generate automatic reports.



Benefits

Drawer for 19” rack: 1 module can store up to 108 LTO tapes which means that a 47U standard rack can offer space for up to 1620 LTO tapes.

Solid construction, security lock and environmental sensors (humidity, temperature) guarantee you full control and protection of stored data.

Use the server cabinet not only to install IT equipment, but also to store data carriers.

Available as a single module or the entire system (can be delivered with rack stand or cabinet).

Why choose the ProDevice Modular Storage System?

There are many arguments, but the most important of them are the following:
  • Access control, measurement of environmental conditions in the drawer, as well as standard fire protection systems in server rooms guarantee that media stored in the MSS drawer are much safer than when stored in a safe.

  • If there is no free space in your data center / server room, or if you simply don’t want to install an additional external separate cabinet, the MSS is the solution for you.

ProDevice Mobile App. available and included to scan the serial number of the media and generate an automatic report.

Meet the storage system, compatible with an intuitive ProDevice application on mobile devices. Thanks to it, users generate a complete report on the storage media.  The software scans barcodes of data media – all this information is available in a clear report that the user downloads to their computer.

Features
  • Antistatic coating
    AXALTA AS03404079227 CAST IRON AS

  • 1,5 mm steel
    EN 10130 (SAE1008 / SAE1010 USA

  • Access control

  • Touchscreen

  • Humidity and temperature monitoring

  • Capacity monitoring

  • Rack rails

If you have a small amount of data media, you don't have to buy a cabinet or an expensive safe - MSS will be the optimal solution.
ProDevice MSS available in the following options:
  • MSS 3U  (BASIC, PROFESSIONAL, ULTIMATE).

  • MSS 4U  (BASIC, PROFESSIONAL, ULTIMATE).

Technical specification MSS (3U and 4U)
3U MSS300 BASIC MSS300 PROFESSIONAL MSS300 ULTIMATE
Capacity: LTO tapes in cases84 pc.84 pc.84 pc.
Capacity: LTO tapes without cases 108 pc.108 pc.108 pc.
Capacity: HDD 3.5" (horizontally) 60 pc.60 pc.60 pc.
Security lock KeyElectromagnetic Electromagnetic
Separating barriers YesYes Yes
Antistatic coating YesYesYes
Touchscreen NoYesYes
Humidity and temperature monitoring NoYesYes
Capacity monitoring NoNoYes
Ext. dimensions 131 mm x 450 mm x 75 0mm 131 mm x 450 mm x 765 mm 131 mm x 450 mm x 765 mm
Capacity 32,5 l 32,5 l 32,5 l
Weight 22 kg 23 kg 23 kg
Warranty2 years 2 years 2 years
MSS300 also suitable for storing: DLT, SuperDLT, SLR, QIC, DDS, DAT tapes, 2.5" HDD/SSD, RDX drives, 3.5" MO drives and other media. The capacity sensors may not work properly when exposing to UV radiation.
4UMSS400 BASICMSS400 PROFESSIONALMSS400 ULTIMATE
Capacity: LTO tapes in cases84 pc. 84 pc. 84 pc.
Capacity: LTO without cases 108 pc.108 pc.108 pc.
Capacity: HDD 3.5" (horizontally) 60 pc.60 pc.60 pc.
Capacity: HDD 3.5" (vertically) 90 pc.90 pc.90 pc.
Capacity: MO 5,25” 92 pc.92 pc.92 pc.
Capacity: 3592 tapes 96 pc.96 pc.96 pc.
Security lock KeyElectromagneticElectromagnetic
Separating barriers YesYesYes
Antistatic coating YesYesYes
Touchscreen NoYesYes
Humidity and temperature monitoring NoYesYes
Capacity monitoring NoNoYes
Ext. dimensions 175 mm x 450 mm x 750 mm 175 mm x 450 mm x 750 mm 175 mm x 450 mm x 750 mm
Capacity 45 l 45 l 45 l
Weight23 kg 24 kg 24 kg
Warranty 2 years 2 years 2 years
MSS400 also suitable for storing: 3590, 3490, 3480 tapes (all generations), DLT, SuperDLT, SLR, QIC, DDS, DAT, 2.5" HDD/SSD, RDX, 3.5 MO drives, CDR , DVD. The capacity sensors may not work properly when exposing to UV radiation
